Sh2-223/224 - Double Supernova Remnants in Auriga

This 2-panel mosaic shows two supernova remnants SNR G166.0+04.3 also cataloged as Sh2-224 and its lesser known companion Sh2-223 or LBN 769 and LBN 768. The Sharpless and Lynds designations the HII regions within the remnant. Sh2-224 is also noted as a BLAZER in the Fermi Large Area Telescope (LAT) 2FGL data series (2FGL J0526.6+4308) - indicating it as a high energy particle ejection source. Sources like this are most often the compact remnant from a star's supernova explosion, namely a neutron star or black hole that accelerates particles to relativistic velocities and emits high energy radiation. Scientific Information about Sh2-223 is very sparse, it is most probably a supernova remnant aswell.

The narrowband data of both objects were photographed with our two widefield setups individually. A LRGB 2-panel mosaic was created as a background to those observations.

Photographed from Bamberg and Heidelberg, Germany under Bortle 5 conditions.

  • Category

    Supernova Remnant

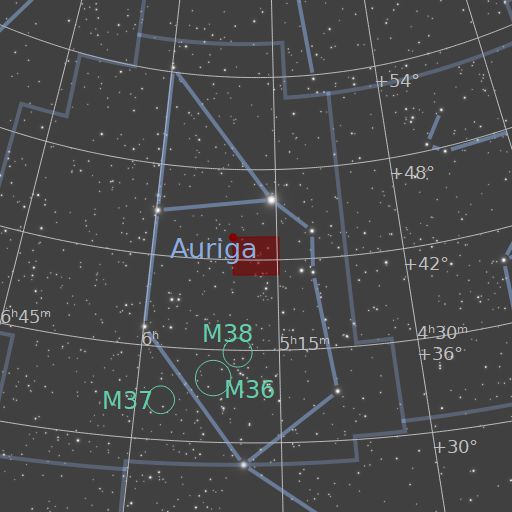

  • Coordinates

    RA 05h 23m 00s
    DEC +42° 23′ 00″

  • Distance

    4.5 kpc

  • Apparent Mag


  • Equipment

    TS Hypergraph 6
    Takahashi e130D
    Skywatcher NEQ6
    iOptron CEM70G
    QHY 294m pro

  • Exposure

    L: 40 x 180 s
    R: 40 x 180 s
    G: 40 x 180 s
    B: 40 x 180 s
    Ha: 458 x 300 s
    OIII: 192 x 300 s
    Total Integration: 60.2 h
